Official Florida Hvac Efficiency Card Template

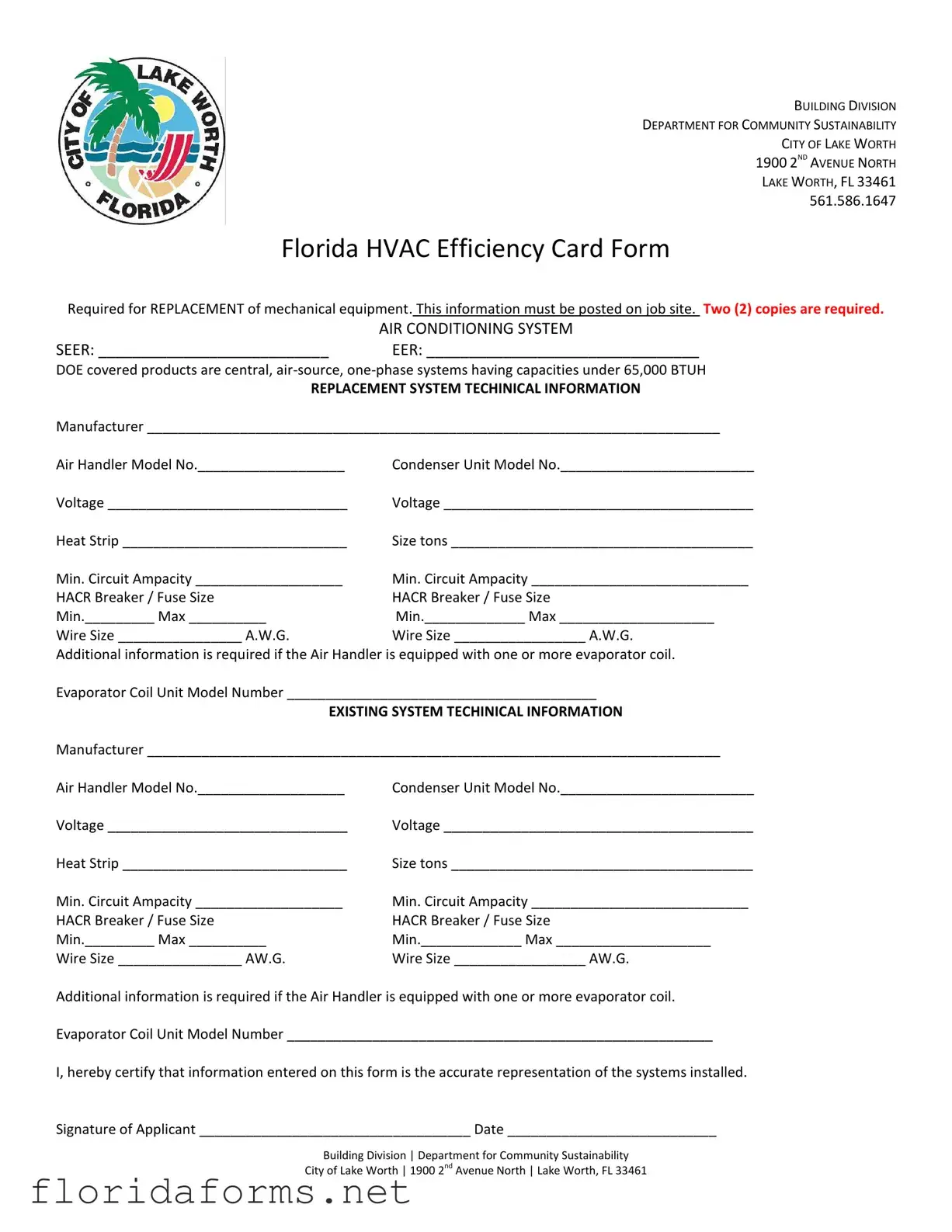

What is the Florida HVAC Efficiency Card Form?

The Florida HVAC Efficiency Card Form is a document required by the Building Division, Department for Community Sustainability in the City of Lake Worth, when there is a replacement of mechanical equipment. It is designed to provide detailed information on both the existing and replacement air conditioning systems, including manufacturer, model numbers, voltage, and other technical specs. This form should be prominently posted at the job site, and two copies must be submitted.

When is the Florida HVAC Efficiency Card Form needed?

This form is needed whenever there's a replacement of mechanical equipment, specifically for air conditioning systems in the City of Lake Worth, FL. Its purpose is to ensure that all replacements comply with the city's standards for energy efficiency and technical specifications.

What information is required on the Florida HVAC Efficiency Card Form?

Information required includes the Seasonal Energy Efficiency Ratio (SEER), Energy Efficiency Ratio (EER), technical details of both the existing and replacement systems (manufacturer, model numbers, voltage, heat strip size, minimum circuit ampacity, HACR breaker or fuse sizes, wire size, and evaporator coil unit model number, if applicable).

Who needs to fill out the Florida HVAC Efficiency Card Form?

The contractor or technician responsible for the replacement of the HVAC system must fill out the form. It requires a detailed comparison of the existing and the new system to ensure the new installation meets or exceed the standards for efficiency and safety set by the authorities.

How many copies of the form are required, and where should they be submitted?

Two copies of the form are required. One should be prominently posted at the job site for inspection purposes, and the other should be submitted to the Building Division, Department for Community Sustainability, City of Lake Worth, at 1900 2nd Avenue North, Lake Worth, FL 33461.

What products are covered under the DOE for this form?

The Department of Energy (DOE) covered products for this form are central, air-source, one-phase air conditioning systems with capacities under 65,000 BTUH. These specifications help ensure that the systems are energy-efficient.

What happens if the Air Handler is equipped with more than one evaporator coil?

Additional information is required if the Air Handler is equipped with more than one evaporator coil. Specifically, you must provide the model number(s) for the evaporator coil units, ensuring that all parts of the system are documented and meet efficiency standards.

Is a signature required on the Florida HVAC Efficiency Card Form?

Yes, a signature is required from the applicant, certifying that the information provided on the form is accurate and represents the systems installed accurately. This sign-off is crucial for accountability and compliance purposes.

Why is it important to correctly fill out and submit the Florida HVAC Efficiency Card Form?

Correctly filling out and submitting this form is important for compliance with local building and energy codes, ensuring the safety and efficiency of HVAC systems. It also enables the inspection process to go smoothly and can help in avoiding potential fines or delays in project completion due to non-compliance.

1. Not including two copies: The requirement is to submit two copies of the filled-out form. Failure to provide the necessary duplicates can result in processing delays.

2. Omitting SEER and EER ratings: The Seasonal Energy Efficiency Ratio (SEER) and Energy Efficiency Ratio (EER) ratings are crucial for evaluating the efficiency of the air conditioning system. Leaving these fields blank or entering inaccurate figures can cause significant issues.

3. Incorrect model numbers: Both the air handler and condenser unit model numbers must be accurately provided. Errors in these inputs can lead to incorrect assessment of the system's compliance and functionality.

4. Forgetting the evaporator coil unit model number: If the air handler is equipped with an evaporator coil, its model number is mandatory. Neglecting to provide this information can result in incomplete documentation.

5. Voltage discrepancies: Listing incorrect voltage for either the air handler or the condenser unit can cause safety concerns and compliance issues. Accurate voltage information is crucial for ensuring system compatibility.

6. Incorrect minimum circuit ampacity and breaker/fuse size: These specifications must match the manufacturer's requirements for the equipment. Errors here can lead to electrical problems and potential hazards.

7. Inaccurate wire size: Submitting the wrong wire size (AWG) can result in insufficient power supply to the unit or exceed safe operational parameters, posing a risk of electrical fires.

8. Unsigned or undated form: The form requires the applicant's signature and the date to verify the accuracy of the information provided. Failure to sign or date the document can invalidate the submission.

To ensure a smooth replacement process and compliance with the City of Lake Worth's regulations, close attention must be paid to accurately completing the Florida HVAC Efficiency Card Form. Avoiding these common mistakes not only helps in adhering to local laws but also contributes to the efficient and safe operation of the new mechanical equipment.

When working with the Florida HVAC Efficiency Card form, contractors and homeowners often need to gather and submit additional documents to ensure compliance with local and federal regulations. These documents can range from permits to product manuals, each playing a crucial role in the approval process. Understanding and preparing these documents in advance can streamline project timelines significantly.

• Permit Application: This document is required to initiate the permit process, detailing the scope of work and identifying the contractor and property owner.
• Proof of Property Ownership: A deed or tax statement is often required to confirm the property belongs to the applicant, ensuring the project is authorized.
• Manufacturer’s Installation Instructions: Detailed guides provided by the equipment manufacturer ensure the HVAC system is installed according to their specifications, promoting safety and efficiency.
• Air Conditioning Contractor’s Certification: This certification verifies that the contractor is licensed to perform HVAC work in the state of Florida, ensuring the quality and legality of the installation.
• Site Plan: A drawing showing the location of the home on the property, including the placement of the HVAC unit, is sometimes necessary for zoning compliance.
• Energy Calculation Worksheet: This form demonstrates the energy efficiency of the new system, ensuring it meets local energy codes.
• SEER/EER Rating Documentation: Official documentation of the system's Seasonal Energy Efficiency Ratio (SEER) and Energy Efficiency Ratio (EER) ratings, proving compliance with minimum efficiency requirements.
• Inspection Request Form: Once installation is completed, this form is used to schedule an inspection with local authorities to ensure the project meets all applicable codes and standards.

Collectively, these documents facilitate a smooth permit application and inspection process, aligning the HVAC installation project with legal and safety standards. Proper preparation and understanding of each form can help avoid delays, ensuring a successful and compliant project completion.

• Building Permit Application Form: This document is quite similar to the Florida HVAC Efficiency Card form because it also collects detailed information about the construction or renovation project, including technical specifications that ensure compliance with local building codes. Both forms serve as vital documentation for regulatory compliance and inspections.

• Energy Efficiency Rebate Form: Much like the Florida HVAC Efficiency Card, this form is used to document the efficiency ratings and specifications of HVAC systems, among other appliances. The goal is to describe the appliance's energy performance to qualify for rebates or incentives offered by utility companies or government agencies, emphasizing the importance of meeting certain efficiency standards.

• Electrical Installation Inspection Form: This document shares similarities with the Florida HVAC Efficiency Card form in its collection of data regarding the electrical aspects of installations, such as voltage, wire size, and circuit ampacity. The focus is on ensuring that installations meet safety and performance standards, requiring technical details similar to those documented for HVAC system replacements.

• Mechanical Permit Application: Similarly, this form requires detailed information about mechanical installations, including HVAC systems. Both forms document technical specifications like manufacturer, model numbers, and size, providing the necessary data for permit approval and ensuring the installation adheres to local codes and standards.

When dealing with the Florida HVAC Efficiency Card form, accuracy and attention to detail are key. Here are 10 essential tips to ensure you fill out the form correctly and efficiently:

• Do gather all necessary information about the new and existing HVAC system before starting the form. This includes manufacturer details, model numbers, and technical specifications.
• Do double-check the SEER (Seasonal Energy Efficiency Ratio) and EER (Energy Efficiency Ratio) ratings of the air conditioning system to ensure they are accurately reported.
• Do use legible handwriting or type out the information if possible. This prevents any confusion or misinterpretation of the data provided.
• Do verify the minimum circuit ampacity and the HACR (Heating, Air Conditioning, and Refrigeration) breaker or fuse sizes for both the air handler and condenser unit.
• Do include the wire size in American Wire Gauge (AWG) for both the existing and replacement systems to ensure compliance with safety standards.
• Do not skip any sections that apply to your equipment. If your air handler is equipped with an evaporator coil, additional information is required.
• Do not guess or estimate any of the technical information. The accuracy of this form is crucial for compliance with local codes and regulations.
• Do not forget to sign and date the form. The signature certifies that the information provided is a true representation of the systems installed.
• Do not submit just one copy of the form. Two copies are required to be posted on the job site.
• Do not neglect to check the voltage requirements for both the existing and replacement systems to prevent any electrical issues.

Following these guidelines will help ensure that the Florida HVAC Efficiency Card form is completed properly, paving the way for a smooth and compliant installation process. Remember, this form is a critical component in ensuring your HVAC system meets the necessary efficiency and safety standards.

When it comes to the Florida HVAC Efficiency Card Form, there are several common misconceptions that people often encounter. Understanding these can help in ensuring that the process of replacing mechanical equipment goes smoothly, and all requirements are adequately met.

• Misconception #1: The form is optional.

  One common mistake is assuming that the Florida HVAC Efficiency Card Form is optional. This document is, in fact, a mandatory requirement for the replacement of mechanical equipment in the specified region. It must be accurately filled out and posted on the job site, and two copies must be submitted. This requirement ensures that all replaced HVAC systems comply with energy efficiency standards and technical specifications.

• Misconception #2: Any HVAC system information can be used.

  Another misunderstanding involves the information provided about HVAC systems on the form. The information must specifically relate to the system being replaced and the new system being installed. All details, including the correct model numbers for the air handler and condenser unit, as well as voltage and amperage specifications, must accurately represent the systems involved. Generic or placeholder information is not acceptable and can lead to compliance issues.

• Misconception #3: It applies only to certain types of HVAC systems.

  Some people believe that the form is applicable only to specific types of HVAC systems. However, the form clearly specifies that it is required for the replacement of mechanical equipment related to air conditioning systems, specifically central, air-source, one-phase systems with capacities under 65,000 BTUH. This includes a wide range of residential HVAC equipment and is not limited to commercial or industrial systems.

• Misconception #4: Signing the form is the last step.

  Lastly, there is a misconception that once the form is signed and submitted, no further action is required. In reality, the form's submission is part of a larger process of compliance and inspection. After submission, the installation may be subject to inspection by local building division authorities to ensure that the replacement HVAC system meets all specified requirements. The signature on the form is a certification of accuracy and compliance by the applicant, but it does not conclude the replacement process.

Clearing up these misconceptions is crucial for homeowners, contractors, and HVAC technicians. Ensuring that the Florida HVAC Efficiency Card Form is accurately completed and properly submitted helps in maintaining high standards of energy efficiency and technical compliance in the HVAC industry.

Understanding the Florida HVAC Efficiency Card form is crucial for anyone looking to replace mechanical equipment in their building. Here are five key takeaways to guide you through filling out and using this form:

• The form is specifically designed for the replacement of mechanical equipment, highlighting the need for accuracy in the documentation of HVAC systems. This is key to ensuring compliance with local requirements.
• It is mandatory to have two copies of this form on hand and visibly posted on the job site. This requirement emphasizes the importance of having this information readily accessible to both the workers on the site and any inspectors who may visit.
• The form requires detailed technical information about both the replacement and existing systems, including manufacturer details, model numbers, voltage, heat strip size, minimum circuit ampacity, and wire size. This detailed information ensures that the replacement system is compatible and meets the efficiency standards set forth.
• Special attention should be given to the sections requiring the model numbers of both the air handler and the evaporator coil unit (if present). The need for both units to be identified separately ensures that all components of the HVAC system are accounted for and evaluated for efficiency.
• The form must be signed by the applicant, certifying that all the provided information is accurate. This signature is a critical step in the process, as it holds the applicant accountable for ensuring that the installation meets all required standards for efficiency and safety.

Filling out the Florida HVAC Efficiency Card form with diligence and attention to detail plays a significant role in ensuring compliant and efficient HVAC installations. This process not only promotes energy efficiency but also supports the overall goal of maintaining high standards of living and sustainability within the community.
